Description

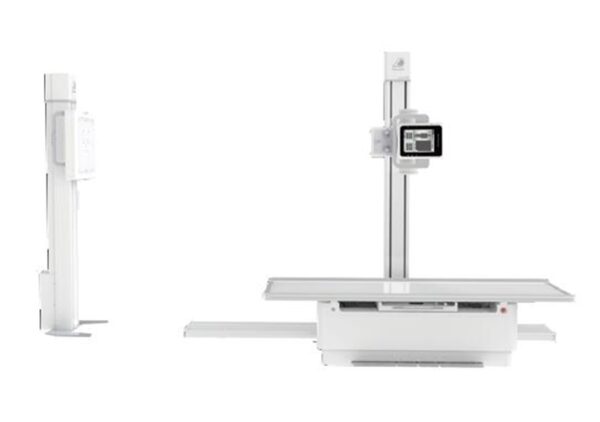

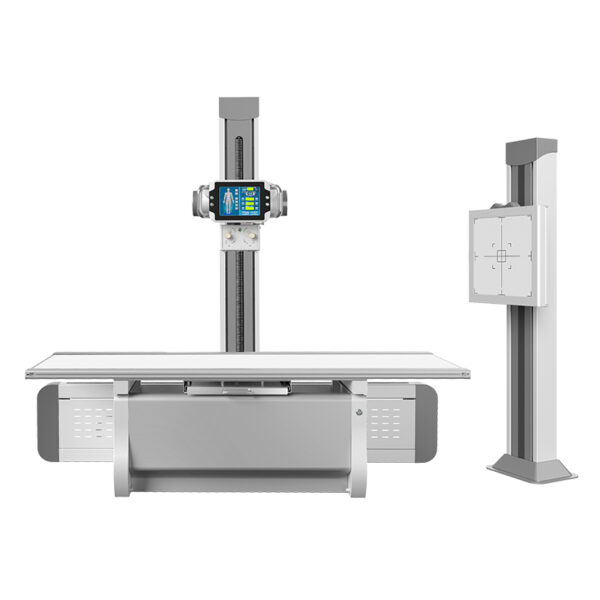

500mA X-Ray Machine, INX-500, Vertex, India
Technichal Specification
| Parameter | Specified value |
| Mains Voltage | 415VAC |
| Frequency | 50Hz |
| Line impedance | 1.5Ω max |
| Length of power cable | 3.0 meter |
| Power output | 24.0 kw |
| Output frequency | Two Pulse |
| Kvp range | 40 – 125 kvp in 1KV/Step |
| Kvp accuracy | ≤ ± 5% |
| mAs range | 1 – 320 mAs |
| mAs accuracy | ≤ ± 10% |
| Overload protection | Programmed |
| Mains isolation | Power supply cable shall be plugged where both poles (L & N) are isolated. |
| Earthing | Earthing N TO G <5V |
| x-ray tube | Rotating anode |
| Focal spot nominal | 1.0mm & 2.0mm |
| Inherent tube filtration | 0.9mm |
| Target angel | 16˚ |
| Collimator | Manual |
| Exposure release switch | 2 steps |
| Type | Floor to ceiling FIX |
| Mobility safety lock | Brake locking option on column |
| Environmental condition For transport & storage: Temperature range | -15˚C to +45˚C |
| Humidity (RH) | Upto 90% (no condensation) |
| Atmospheric pressure. | 50kpa to 105kpa |
| Operating: | |
| Temperature | 10˚c to 40˚c |
| Humidity (RH) | Upto 85% (non condensing) |
| Conforms to standards | IS:7620 PART-1 AERB approved |
Product Description
Vertex, a 500 mA X-ray machine by Innovation Meditech Pvt. Ltd. With 415VAC mains voltage, 24.0 kW power output, and 1.0mm/2.0mm focal spot, it ensures precise diagnostics. AERB approved and compliant with IS: 7620 PART-1, it guarantees reliable imaging in diverse medical settings. Proudly manufactured by INNOVATION MEDITECH (P) LTD., a leading supplier of X-ray machines in India.
Additional Information
Delivery Time: 15 Days
