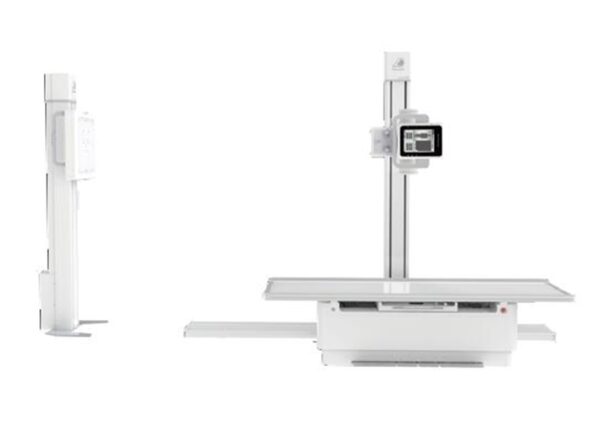

50kW, 630mA X-ray Machine, Model: PLD- 5600, Brand: Perlove Medical, China

Description

• 50kW, 630mA X-ray Machine
• Model: PLD- 5600
• Brand: Perlove Medical
• Country of Origin: China
• Warranty: 02 (Two) Years
• Delivery: Within 45 to 60 Days.

Feature:

Graphical anatomy program- The system offers an easy-to-understand visual logic for intuitive exposure parameter setting.

 3D positioning guidance- Creating a 3D positioning image to help the patient for fast and accurate positioning guidance.

 Self-adaptive screen- Screen auto rotation between table and bucky stand, offering easy and convenient operation.

 Data synchronization- Exposure parameters synchronization between touch screen interface and workstation, speeding up your workflow in daily routine.

 Emergency mode- Allowing instant exposure for fast examination, saving valuable time for emergency workflow

Specification:

Power

• Voltage -380V±38V
• Frequency -50Hz±10Hz
• Electrical Power- Three phase

High Frequency High Voltage Generator

• Output Power -50KW
• Inverter Frequency – 500KHz
• Tube voltage – 40kV-150kV, 1 kv step
• Tube current – 10mA-630mA
• mAs- 0.1-630mAs

Collimator

• Illumination brightness ->=200Lux
• Filiter ->=1mmAL

X ray tube

• Model: XQG50
• Tube Focus:big/small -1.2mm/0.6mm
• Input power – big focus 74kW Small focus 30kW
• Target surface -12°
• Anode thermal capacity -300KHU (rotating anode)
• Anode Heat dissipation: 750W
• Tube Capacity: 1300KHU
• Filter -0.9mm AL/75KV
• Rotary anode speed: 8400rpm
• Work voltage: 40-150KV

Flat Panel Detector

• Materials- A-Si (Amorphous Silicon)- CSI
• Active area -430(H)×430(V)mm
• Pixel matrix – 3072(H)×3072(V)
• Pixel pitch -139μm
• Spatial resolution -3.7LP/mm
• A/D – 16bit
