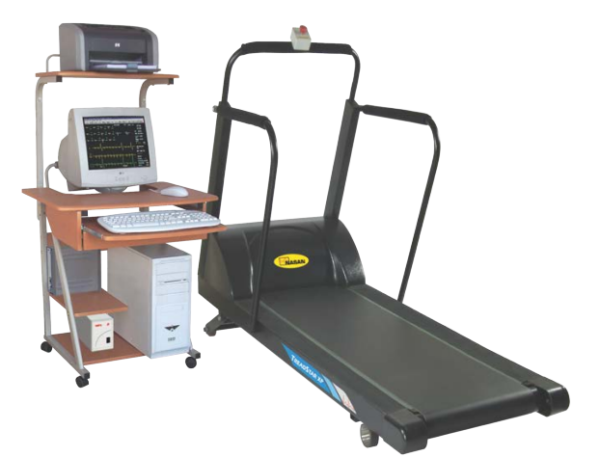

ETT Machine with Computer Printer, ST-Win Standard, Nasan Medical Equipment, India

650,000.00৳

Nasan Digital ETT Machine – ST Win Standard (India)
A reliable digital treadmill test (ETT) system designed for accurate cardiac stress testing. It features high-quality ECG acquisition with DSP filtering, optical patient isolation, high CMRR, and precise heart rate measurement. The system supports comprehensive data storage and reporting, paired with a heavy-duty treadmill offering smooth speed control, high patient capacity, and adjustable incline. Backed by a one-year warranty and free servicing, it is ideal for routine cardiac diagnostics.

Description

Nasan Digital ETT Machine_ST win Standard

Model: ST win Standard
Manufacture: Nasan Medical Electronics Pvt Ltd.
Country of Origin: India
Technical Specification

Frequency response	05 Hz to 150 Hz with notch at 50Hz
Filter	DSP
Input impedance	10 MΩ
Time constant	> 3.2 sec
A/D conversion	12 bit
Noise	< 20μV p-p
p-p
Leakage current	< 10 μA
Patient isolation	Optical isolation.
Gain	5, 10 & 20 mm/mV selectable.
CMRR	> 120 dB
Sweep speed	25.0 mm/S.
Accuracy of HR	+/- 2 BPM.
Sampling Frequency	250 samples per second simultaneous
Storage	12 lead unaveraged ECG, 10-second Rhythm strips of 12 leads, Medians after every 8 sec along with HR, BP and fiducial points, full disclosure of entire test

Treadmill:

Power	230V/220, 50Hz, 15A
Power consumption	1.5KVA
Incline Range	0-22%
Dimension	L X W – 2055 X 750 mm
Walking Area	1440 X 500mm
Weight	100Kg
Patient Weight	Up to 250kg
Belt Speed	Smooth, 0-15Kmph
