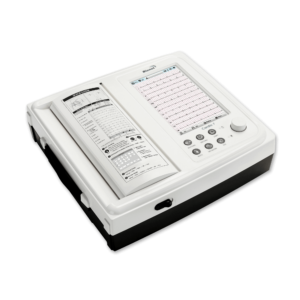

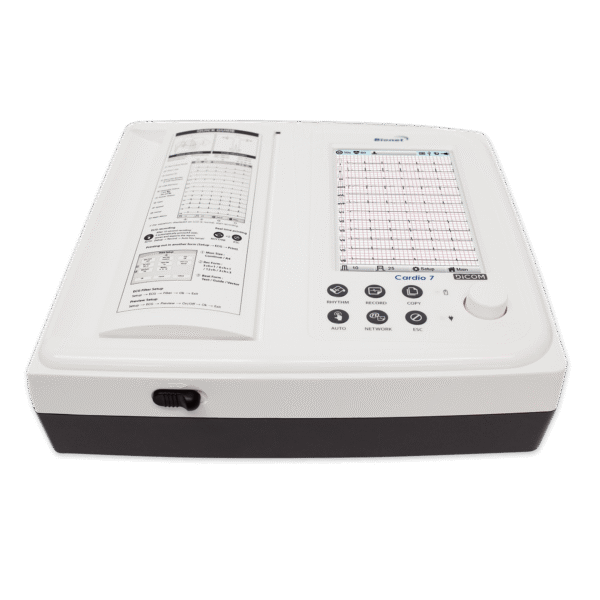

ECG Machine (12 Channel)

EASY Operation

• With 7″ Bright Color LCD Touchscreen operation
• Alphanumeric keyboard on screen
• Quick patient ID entry with barcode scanner
• Convenient A4 print-out with 12CH interpretation on/off
• Lead fault detection & notice / Pace-maker detection

Simplifying workflow

• Easy patient ID entry & worklist orders retrieval
• One touch “AUTO” workflow with acquisition, save, print-out, and transfer to HIS
• Direct DICOM file transfer to PACS
• Convenient various file conversions in PDF, XML, MFER, BMP, JPEG

Efficient data management & Full disclosure

• 5min, of Full disclosure for Arrythmia tracing & review
• 200 ECGs internal data memory
• Long-term recording 1min, 3min, 5min, and 10min for HRV analysis
• 10 sec, pre-acquisition for immediate printing of any instant abnormal rhythm at sight

Advanced Analysis & Report

• VECTOR, GUIDE, TEXT report
• Patented Bionet ST-MAP for enhanced interpretation
• 120 kinds of interpretation based on the Minnesota Code.

Technical Specification:

• ECG Leads : Simultaneous 12 Leads Resting ECG
• Recording Channel : 3CH+1RHY, 3CH+3RHY, 6CH+1RHY, 12CH, 6CH+ST map 1CH Long Time(1min, 3min, 5min, 10min) and Special Beat Report (Text, Guide, Vector, ST map)
• Gain : 2.5, 5, 10, 20, Auto (I-aVF: 10, V1-V6: 5) mm/mV
• Printing speed : 5, 12.5, 25, 50, 100 mm/sec
• Sampling rate : Analysis Sampling Rate – 500 Digital Sampling Rate – 8,000
• Filters : AC (50/60 Hz, -20dB or better), Muscle (25-35Hz, -3dB or better), Base line drift (0.05Hz, 0.1Hz, 0.2Hz, -3dB or better), Low pass filter (off, 40Hz, 100Hz, 150Hz)
• Display :800 x 480 pixel resolution, 7″ Color TFT wide display 12 channels preview, ID, HR, Gain, Speed, Power status
• User Interface : Touch screen, Rotary push-knob
• Printer Resolution : Thermal print head, Roll Paper

Report paper -width: A4/Letter 215mm(8.5″) -length: A4, 297 mm(11.7″)

Letter 279mm(11″)

Resolution: 8dot/mm(0.125mm pitch)

• Patient data : ID, name, age, gender, height, weight, race, smoke, department, room number, study desc., accession no, referring physician
• Basic Measurement : Heart rate(30-300bpm, ±3bpm), PR/RR int., QRS dur., QT/QTc int., P-R-T axis, SV1/RV5/R+S amp.
• ECG Data Storage : Internal Storage for 200 ECGs: Built-in memory
• Signal Quality Control Pacemaker pulse detection, Lead fault detection, Signal Saturation Detection
• Line Power: Input: 100-240Vac, 1.5-0.75A, 50-60Hz Output: 15Vdc, 4.2A
• Battery type : Replaceable and Rechargeable, Lithium ion, 10.8V, 3250mA
• Battery Capacity : 6 hours of normal use or print 200 ECG pages (12 channel format at 25mm/s and 10mm/mV) Battery recharge to full capacity in 3hours.
• Communication : LAN, WIFI(option), USB flash driver, USB barcode scanner

EASY Operation

• With 7″ Bright Color LCD Touchscreen operation
• Alphanumeric keyboard on screen
• Quick patient ID entry with barcode scanner
• Convenient A4 print-out with 12CH interpretation on/off
• Lead fault detection & notice / Pace-maker detection

Simplifying workflow

• Easy patient ID entry & worklist orders retrieval
• One touch “AUTO” workflow with acquisition, save, print-out, and transfer to HIS
• Direct DICOM file transfer to PACS
• Convenient various file conversions in PDF, XML, MFER, BMP, JPEG

Efficient data management & Full disclosure

• 5min, of Full disclosure for Arrythmia tracing & review
• 200 ECGs internal data memory
• Long-term recording 1min, 3min, 5min, and 10min for HRV analysis
• 10 sec, pre-acquisition for immediate printing of any instant abnormal rhythm at sight

Advanced Analysis & Report

• VECTOR, GUIDE, TEXT report
• Patented Bionet ST-MAP for enhanced interpretation
• 120 kinds of interpretation based on the Minnesota Code.

Technical Specification:

• ECG Leads : Simultaneous 12 Leads Resting ECG
• Recording Channel : 3CH+1RHY, 3CH+3RHY, 6CH+1RHY, 12CH, 6CH+ST map 1CH Long Time(1min, 3min, 5min, 10min) and Special Beat Report (Text, Guide, Vector, ST map)
• Gain : 2.5, 5, 10, 20, Auto (I-aVF: 10, V1-V6: 5) mm/mV
• Printing speed : 5, 12.5, 25, 50, 100 mm/sec
• Sampling rate : Analysis Sampling Rate – 500 Digital Sampling Rate – 8,000
• Filters : AC (50/60 Hz, -20dB or better), Muscle (25-35Hz, -3dB or better), Base line drift (0.05Hz, 0.1Hz, 0.2Hz, -3dB or better), Low pass filter (off, 40Hz, 100Hz, 150Hz)
• Display :800 x 480 pixel resolution, 7″ Color TFT wide display 12 channels preview, ID, HR, Gain, Speed, Power status
• User Interface : Touch screen, Rotary push-knob
• Printer Resolution : Thermal print head, Roll Paper

Report paper -width: A4/Letter 215mm(8.5″) -length: A4, 297 mm(11.7″)

Letter 279mm(11″)

Resolution: 8dot/mm(0.125mm pitch)

• Patient data : ID, name, age, gender, height, weight, race, smoke, department, room number, study desc., accession no, referring physician
• Basic Measurement : Heart rate(30-300bpm, ±3bpm), PR/RR int., QRS dur., QT/QTc int., P-R-T axis, SV1/RV5/R+S amp.
• ECG Data Storage : Internal Storage for 200 ECGs: Built-in memory
• Signal Quality Control Pacemaker pulse detection, Lead fault detection, Signal Saturation Detection
• Line Power: Input: 100-240Vac, 1.5-0.75A, 50-60Hz Output: 15Vdc, 4.2A
• Battery type : Replaceable and Rechargeable, Lithium ion, 10.8V, 3250mA
• Battery Capacity : 6 hours of normal use or print 200 ECG pages (12 channel format at 25mm/s and 10mm/mV) Battery recharge to full capacity in 3hours.
• Communication : LAN, WIFI(option), USB flash driver, USB barcode scanner

.
